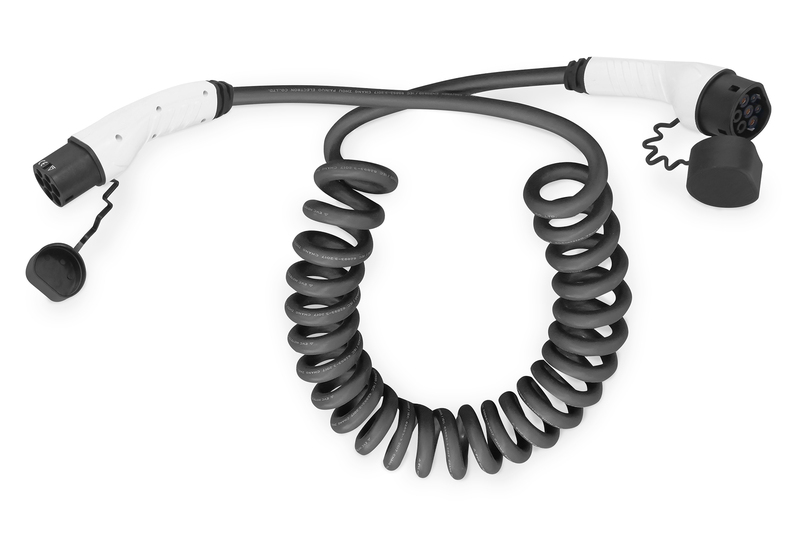

EV charging - Three Phase, 415V, 16A, 5 m Type 2 to Type 2 Spiral charger cable

DIGITUS DK-3P16-S-050 (5m) high quality flexible cable, offers in longer length, the comfort of charging in Home (garage) and also in public charging station

• Easy plug and play in home wall box and also in public car charging stations
• Compact and Easy to carry - Lightweight and space-saving cable, easy to store in car boot or hang it in garage
• Safety and Durability - High quality copper cable and TPU material as outer jacket along with IP55 provides maximum protection for your EV charger and your car
• Connectivity - Compatible with all electric vehicles, electric cars and hybrids of type 2 (IEC 62196-2)
• Charging - Supports charging processes up to max. 22 kW depending on charger device (3-phase up to max. 11 kW)
• CE certified by TÜV
• Flammability standard : UL94 V-0

The Digitus DK-3P16-S-050 car charging cable allows you to easily connect any vehicle with type 2 plug to public charging stations or wallboxes with charging socket. The type 2 charging cables are certified according to EN 62196-1:2014, EN 62196-2:2017 and protection class IP55.

Technical Details

• Cable length : 5m
• Cable diameter : 5G6mm²+2*0.5mm²
• Outer diameter : 16,8mm +/- 0,5mm
• Color : Black
• Jacket : TPU
• Connector : EN 62196-2 type 2
• Rated voltage : 415V
• Rated power : 11kW
• Rated current : 16A
• Number of phases : 3 phase
• Contact resistance : 0.5mΩ (Max)
• Insulation resistance : 1000MΩ (Min) @ DC500V
• Resistive voltage : 2000V
• Resistance coding : 220Ω
• Terminal temperature rise : ≤50K
• Standard : EN 62196-1:2014, EN 62196-2:2017
• Working temperature : -30℃～+50℃
• Humidity at work : 5% -95% non-condensed.
• Flammability standard : UL94 V-0
• IP protection : IP55

Package content

• 1 x Charger Cable
• Quick Installation Guide
