DIGITUS CAT 5e, Class D, RJ45 Modular Coupler, shielded
AT-AG 2X8/8
EAN 4016032066576
| Print version |
|---|
-
Description

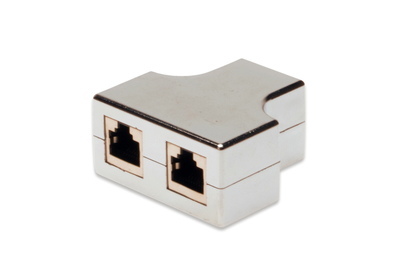

CAT 5e modular coupler, shielded 2x RJ45 to 1x RJ45, threefold coupler
The modular CAT 5e coupler from DIGITUS® consists of three shielded RJ45 sockets. The assignment is "1:1".
Technical Details
- Technical properties:
- Housing material: ABS halogen-free, UL 94V-0
- Contacts coating: Nickel, gold-plated 0.5 µ
- Shielding: Tinned bronze
- Physical properties:
- Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)
- Insertion force: 30N max. (IEC 60603-7-5)
- Retention strength: 7.7 kg between jack and plug
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 300 10,50 41,00 31,00 30,00 38130,00 Packaging Unit Inside 30 1,05 23,50 20,00 11,50 5405,00 Packaging Unit Single 1 0,04 21,00 5,00 2,00 210,00 Net single without Packaging 1 0,03 21,00 5,00 2,00 210,00
